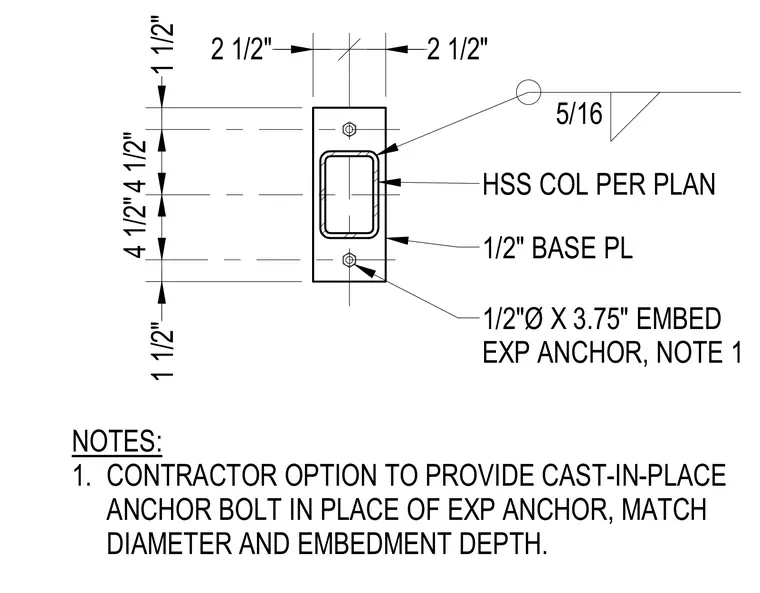

A hollow structural section column is welded to a one-half-inch steel base plate using a five-sixteenths-inch fillet weld. The assembly is secured with two one-half-inch diameter by three-and-three-quarters-inch embedment expansion anchors placed symmetrically. A note allows the contractor the option to provide cast-in-place anchor bolts matching the diameter and embedment depth of the expansion anchors.
2 1/2" 2 1/2" 1 1/2" 4 1/2" 4 1/2" 1 1/2" 1/2" BASE PL HSS COL PER PLAN 5/16 1/2"Ø X 3.75" EMBED EXP ANCHOR, NOTE 1 NOTES: 1. CONTRACTOR OPTION TO PROVIDE CAST-IN-PLACE ANCHOR BOLT IN PLACE OF EXP ANCHOR, MATCH DIAMETER AND EMBEDMENT DEPTH.
