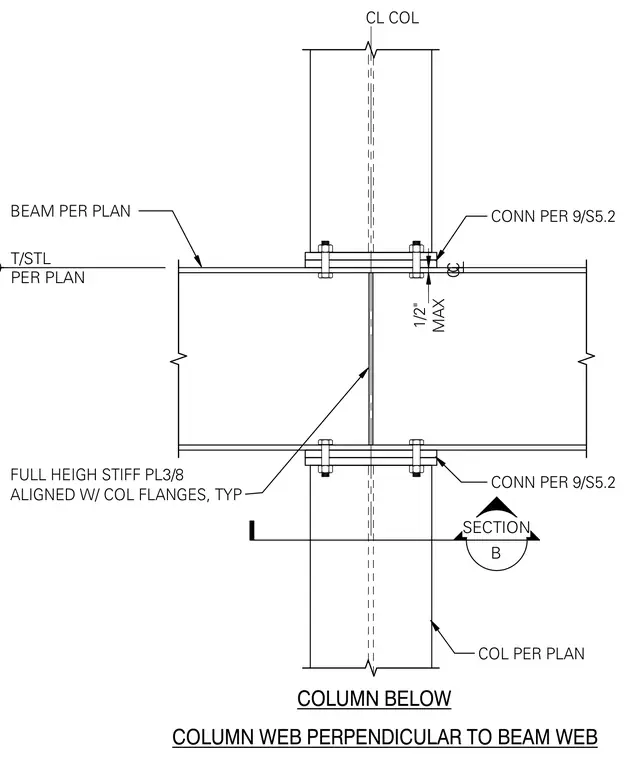

A structural steel beam connects to a supporting column where the column web is oriented perpendicular to the beam web. The beam flange is positioned above the column with a maximum one-half-inch clearance. Three-eighths-inch thick full-height stiffener plates align with the column flanges on both sides. Connections are detailed per structural drawing references.
COL PER PLAN COLUMN BELOW BEAM PER PLAN T/STL PER PLAN B SECTION C L C L MAX 1/2" COLUMN WEB PERPENDICULAR TO BEAM WEB CL COL CONN PER 9/S5.2 CONN PER 9/S5.2 FULL HEIGH STIFF PL3/8 ALIGNED W/ COL FLANGES, TYP
