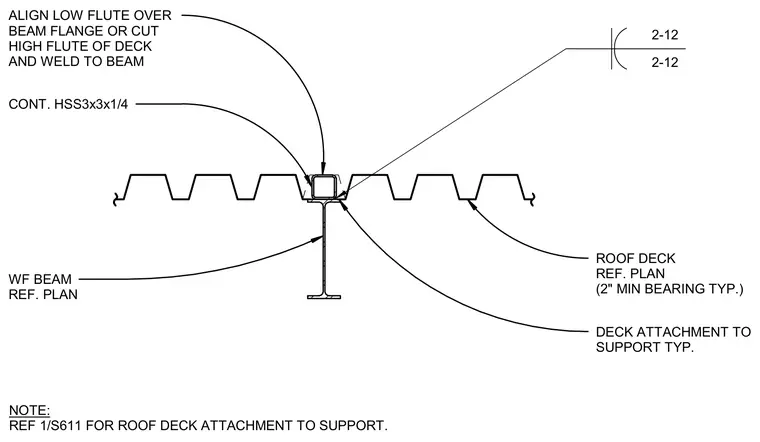

A continuous HSS3x3x1/4 structural steel tube bears directly on a wide-flange beam, supporting roof deck flutes above. The roof deck requires a minimum two-inch bearing width on each side of the support. Low flutes of the metal deck align over the beam flange, or high flutes are cut to allow direct welding to the beam. Deck attachment follows standard details referenced on the structural plans.
ROOF DECK REF. PLAN (2" MIN BEARING TYP.) DECK ATTACHMENT TO SUPPORT TYP. ALIGN LOW FLUTE OVER BEAM FLANGE OR CUT HIGH FLUTE OF DECK AND WELD TO BEAM CONT. HSS3x3x1/4 WF BEAM REF. PLAN 2-12 2-12 NOTE: REF 1/S611 FOR ROOF DECK ATTACHMENT TO SUPPORT.
