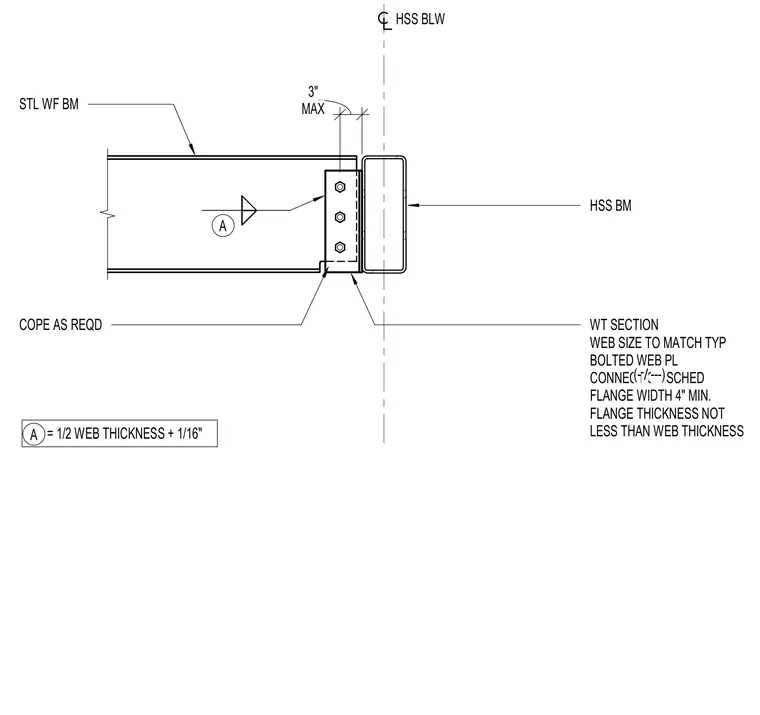

A steel wide flange beam connects to a hollow structural section beam using a WT section web plate. The bolted web plate connection requires a minimum flange width of four inches and a flange thickness not less than the web thickness. A cope is provided as required with a dimension equal to half the web thickness plus one sixteenth of an inch. A maximum clearance of three inches is maintained below the hollow structural section.
MAX 3" HSS BLW STL WF BM WT SECTION WEB SIZE TO MATCH TYP BOLTED WEB PL CONNECTION SCHED FLANGE WIDTH 4" MIN. FLANGE THICKNESS NOT LESS THAN WEB THICKNESS / (- ---) A COPE AS REQD A = 1/2 WEB THICKNESS + 1/16" HSS BM
