Reinforcing bars maintain continuous spans across slab openings without interruption. Typical reinforcement spacing and slab reinforcing sizes are sized per plan. A minimum of one inch clear cover is provided to the reinforcement.

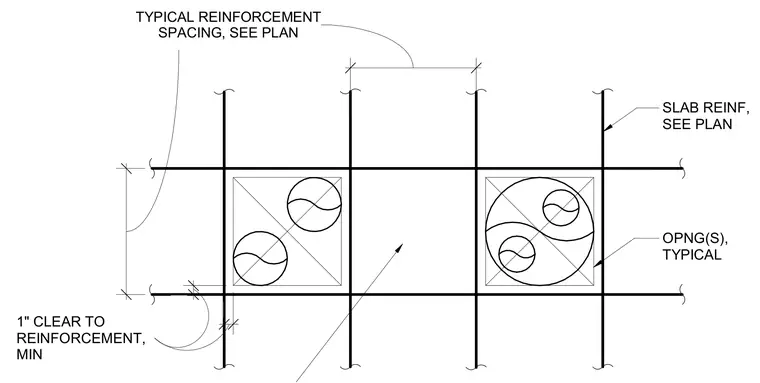

SLAB REINF, SEE PLAN OPNG(S), TYPICAL 1" CLEAR TO REINFORCEMENT, MIN SPACING, SEE PLAN TYPICAL REINFORCEMENT
