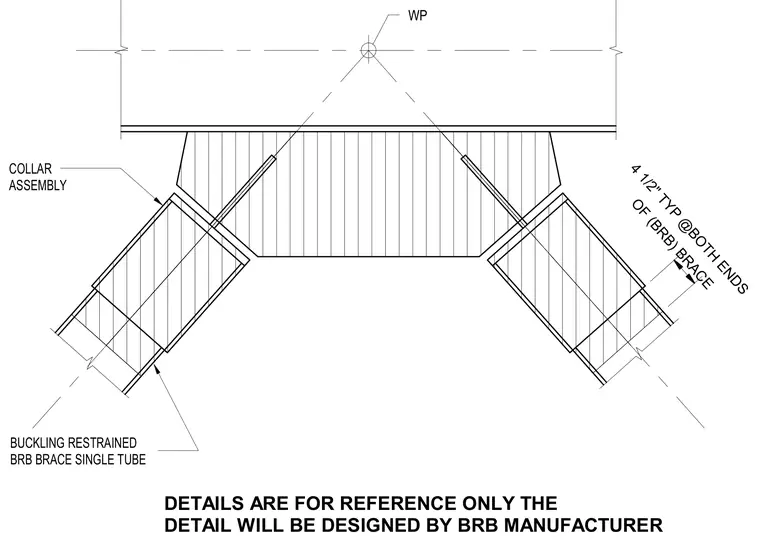

A buckling restrained brace connects to a gusset plate assembly centered on a work point. A single tube collar assembly fits over each end of the buckling restrained brace with a typical four and one-half inch clearance at both ends. These details are provided for reference only and the final connection design will be executed by the buckling restrained brace manufacturer.
WP BUCKLING RESTRAINED BRB BRACE SINGLE TUBE COLLAR ASSEMBLY OF (BRB) BRACE 4 1/2" TYP @BOTH ENDS DETAILS ARE FOR REFERENCE ONLY THE DETAIL WILL BE DESIGNED BY BRB MANUFACTURER
