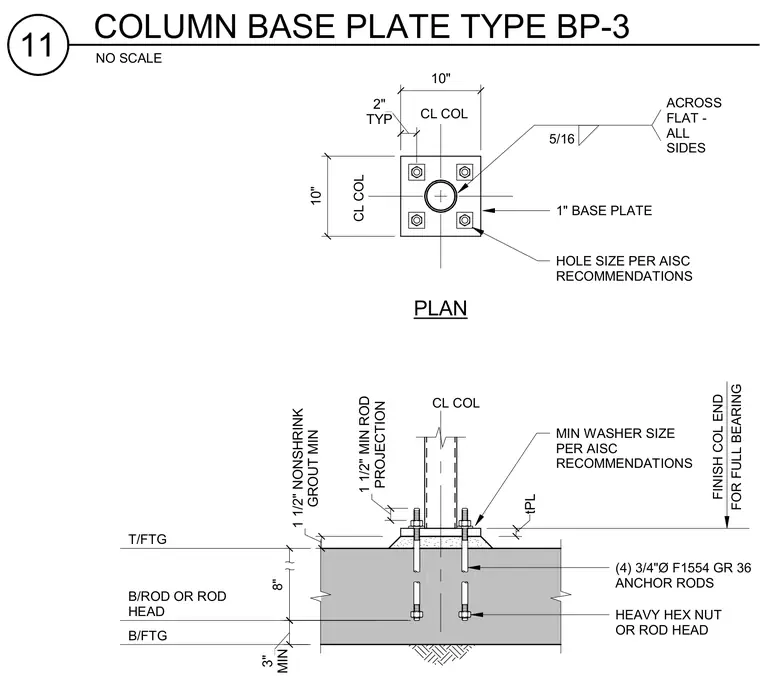

A hollow structural section column is welded to a one-inch thick steel base plate with a five-sixteenths inch fillet weld across all sides, with the column end finished for full bearing. The base plate is anchored to a concrete footing by four three-quarters inch diameter ASTM F1554 Grade 36 anchor rods featuring heavy hex nuts or rod heads and minimum washer sizes per AISC recommendations. A one and one-half inch minimum layer of non-shrink grout is provided beneath the base plate over the concrete footing. The anchor rods project a minimum of one and one-half inches above the grout and extend into the footing with bottom rod heads positioned eight inches below the top of the footing.
T/FTG B/ROD OR ROD HEAD B/FTG 5/16 ACROSS FLAT - ALL SIDES 1" BASE PLATE HOLE SIZE PER AISC RECOMMENDATIONS FINISH COL END FOR FULL BEARING (4) 3/4"Ø F1554 GR 36 ANCHOR RODS HEAVY HEX NUT OR ROD HEAD 10" 10" MIN 3" ?" GROUT MIN 1 1/2" NONSHRINK tPL PROJECTION 1 1/2" MIN ROD PLAN MIN WASHER SIZE PER AISC RECOMMENDATIONS TYP 2" CL COL CL COL CL COL 8" NO SCALE 11 COLUMN BASE PLATE TYPE BP-3
