Development Length Ldt for Grade 60 Rebar

Materials

Reinforced Concrete

Elements

Reinforcing

Connections

Rebar Splice / Development

About this detail

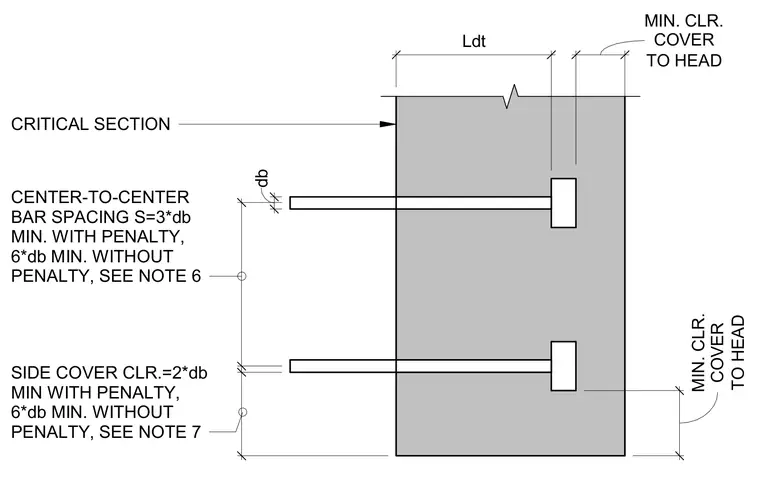

Grade 60 headed reinforcing bars embedded in concrete require a development length and spacing measured from the concrete face along the development length Ldt. Center-to-center bar spacing is maintained at three times the bar diameter minimum with penalty, or six times the bar diameter minimum without penalty, per note six. Side cover clearance requires two times the bar diameter minimum with penalty, or six times the bar diameter minimum without penalty, per note seven. Minimum clear cover to the head is also specified at the embedded end.
