Structural · S-Z23A2

CMU Control Joint with Horizontal Reinforcing and Smooth Dowel

Materials

Elements

About this detail

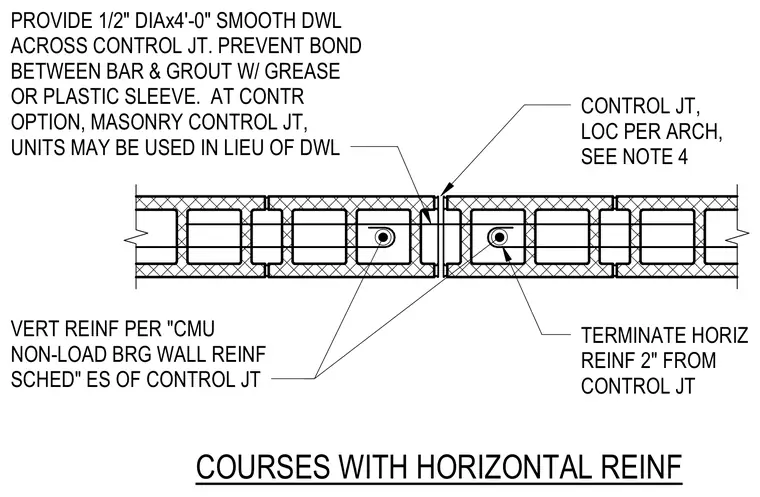

Concrete masonry unit control joint located per architectural drawings with horizontal reinforcement terminating two inches from the joint. A one-half-inch diameter by four-foot-long smooth dowel spans across the control joint. Bond between the dowel bar and grout is prevented using grease or a plastic sleeve. At the contractor's option, masonry control joint units may be used in lieu of dowels, with vertical reinforcement detailed per the CMU non-load-bearing wall reinforcement schedule on each side of the control joint.
