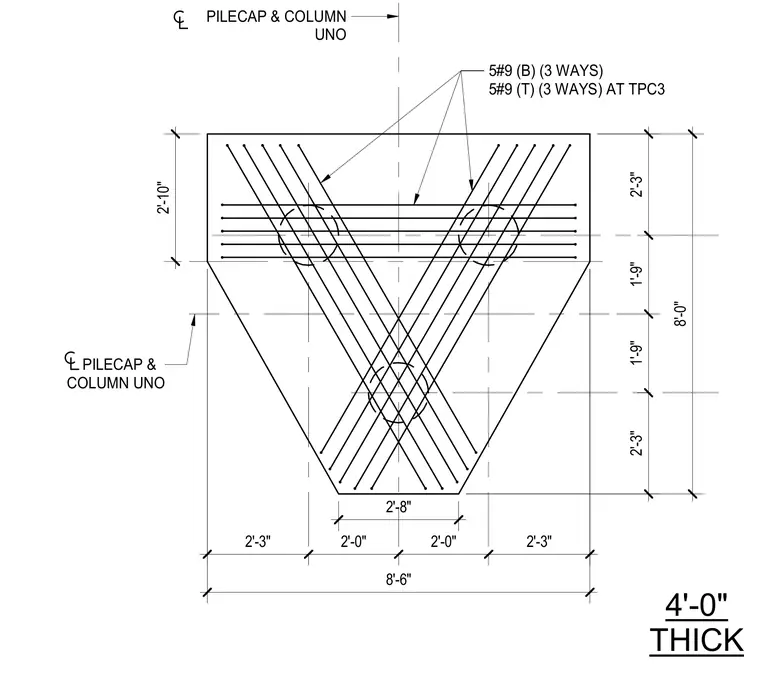

A four-foot thick concrete pile cap is reinforced with number nine bottom bars in three ways and number nine top bars in three ways unless noted otherwise. The plan provides complete dimensional layout for the pile cap and column centerlines, detailing the precise positioning of the internal reinforcing steel. Overall dimensions measure eight feet six inches horizontally by eight feet vertically.
4'-0" THICK PILECAP & COLUMN UNO 5#9 (B) (3 WAYS) 5#9 (T) (3 WAYS) AT TPC3 PILECAP & COLUMN UNO 2'-3" 2'-0" 2'-0" 2'-3" 8'-6" 8'-0" 2'-3" 1'-9" 1'-9" 2'-3" 2'-10" 2'-8"
