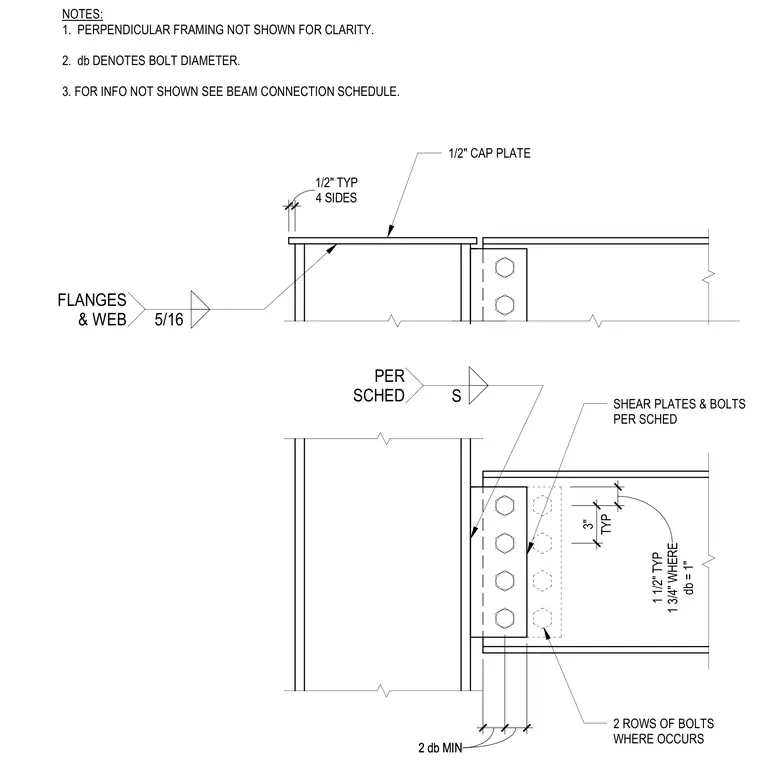

A structural steel framing connection joins a steel beam to a wide-flange column flange. The assembly includes a one-half inch thick cap plate welded to the column top with five-sixteenth inch fillet welds on four sides. Shear plates and bolts are sized per the connection schedule, utilizing two rows of bolts where required with a bolt diameter denoted as db equal to one inch. Edge distances and spacing dimensions specify two times the bolt diameter minimum, three inch typical spacing, and one and one-half inch typical with one and three-quarter inch spacing where applicable. Perpendicular framing is omitted for clarity.
NOTES: 1. PERPENDICULAR FRAMING NOT SHOWN FOR CLARITY. 2. db DENOTES BOLT DIAMETER. 3. FOR INFO NOT SHOWN SEE BEAM CONNECTION SCHEDULE. 2 ROWS OF BOLTS WHERE OCCURS SHEAR PLATES & BOLTS PER SCHED 4 SIDES 1/2" TYP 1/2" CAP PLATE 2 db MIN 2 db MIN TYP 3" db = 1" 1 1/2" TYP 1 3/4" WHERE 5/16 FLANGES & WEB S PER SCHED
