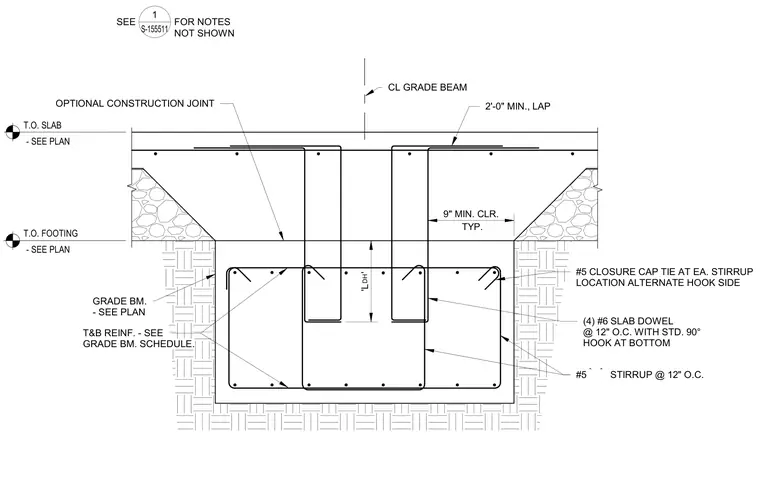

This interior grade beam detail shows a reinforced concrete foundation with top and bottom reinforcement sized per the grade beam schedule and enclosed by number five stirrups spaced at twelve inches on center. Four number six slab dowels are provided at twelve inches on center with standard ninety-degree hooks at the bottom extending into the grade beam with a development length of 'LDH' and a nine-inch minimum clear spacing. An optional construction joint is located at the top of the footing below the slab, which is positioned per plan. Additional notes are referenced from sheet S-155511.
OPTIONAL CONSTRUCTION JOINT T.O. FOOTING - SEE PLAN SEE FOR NOTES NOT SHOWN 1 S-155511 CL GRADE BEAM 2'-0" MIN., LAP T.O. SLAB - SEE PLAN GRADE BM. - SEE PLAN #5 STIRRUP @ 12" O.C. (4) #6 SLAB DOWEL @ 12" O.C. WITH STD. 90° HOOK AT BOTTOM 'L ' DH TYP. 9" MIN. CLR. #5 CLOSURE CAP TIE AT EA. STIRRUP LOCATION ALTERNATE HOOK SIDE T&B REINF. - SEE GRADE BM. SCHEDULE.
