Structural · S-YZPM9

Elevator Rail Column Connection

Materials

Concrete Steel Metal (misc.)

Elements

Columns Beams Decks Connections / Plates

Connections

Base Plate / Anchorage Bolted Connection

About this detail

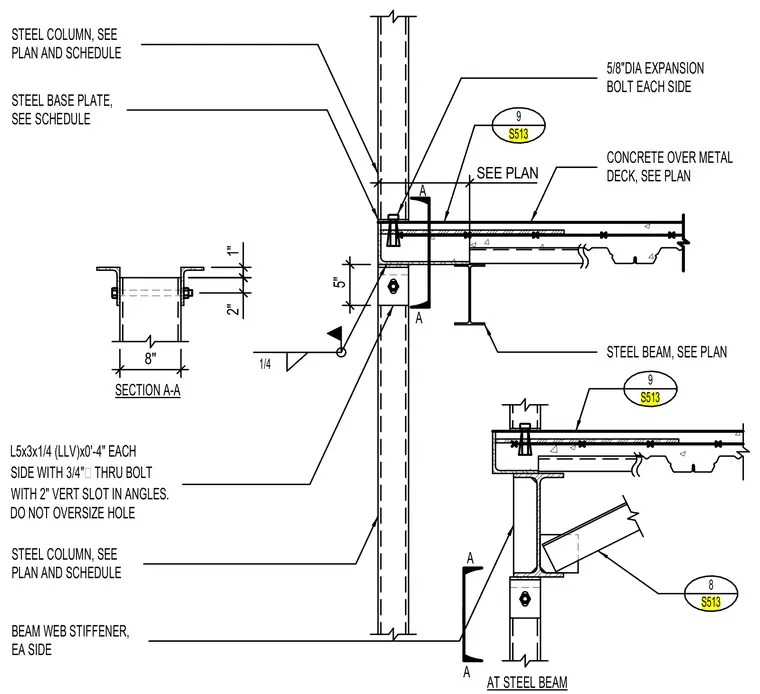

This connection details an elevator rail assembly supported by a steel column and steel beam framing. A steel base plate is anchored to a concrete over metal deck slab with 5/8-inch diameter expansion bolts on each side. L5x3x1/4 angles measuring 0'-4" long are placed on each side with a 3/4-inch through bolt passing through a 2-inch vertical slot in the angles, while maintaining snug-tight conditions without oversizing the hole. Beam web stiffeners are attached on each side with a 1/4-inch fillet weld to support the structural configuration. Steel columns and steel beams are sized per plan and schedule.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
