Fastening devices requiring penetration greater than 3/4 inch must maintain a 4-inch clear distance from post-tensioned tendons within the concrete slab. The contractor must determine the exact location of all post-tensioned tendons prior to the installation of any fasteners.

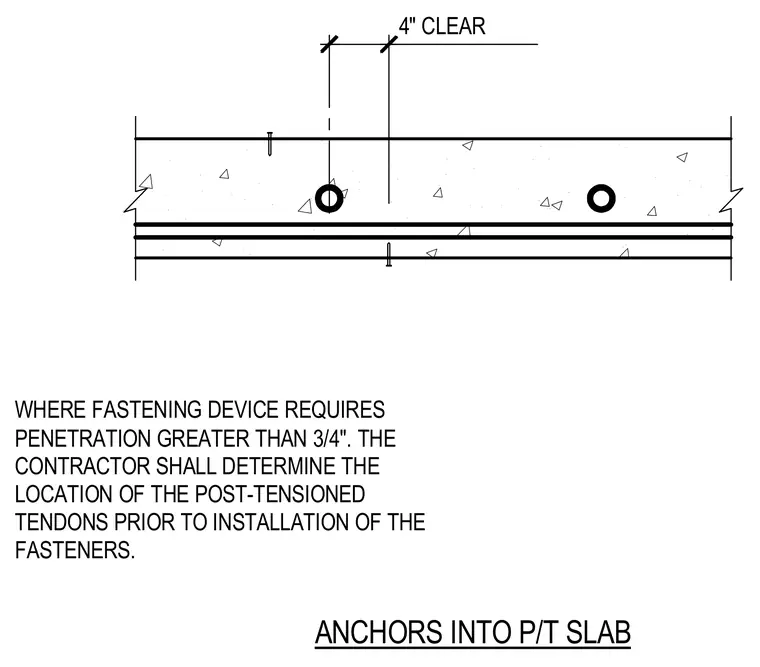

4" CLEAR ANCHORS INTO P/T SLAB WHERE FASTENING DEVICE REQUIRES PENETRATION GREATER THAN 3/4". THE CONTRACTOR SHALL DETERMINE THE LOCATION OF THE POST-TENSIONED TENDONS PRIOR TO INSTALLATION OF THE FASTENERS.
