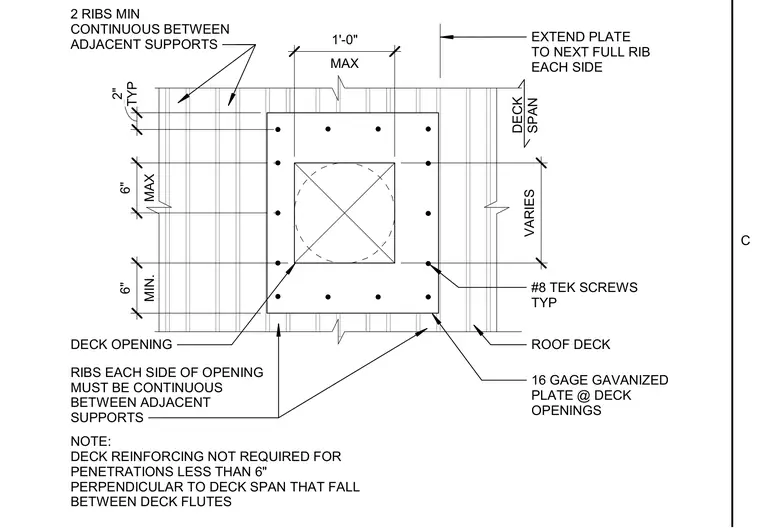

Framing reinforcement for a roof deck opening spans between structural supports. A 16-gauge galvanized plate is secured over the deck opening using typical number eight Tek screws. The reinforcing plate extends to the next full rib on each side with a minimum six-inch overlap. Two continuous ribs are required on each side of the opening between adjacent structural supports. Deck reinforcing is omitted for penetrations less than six inches perpendicular to the deck span that fall entirely between deck flutes.
TYP 2" MAX 6" EXTEND PLATE TO NEXT FULL RIB EACH SIDE MIN. 6" MAX 1'-0" VARIES ROOF DECK DECK SPAN 16 GAGE GAVANIZED PLATE @ DECK OPENINGS DECK OPENING NOTE: DECK REINFORCING NOT REQUIRED FOR PENETRATIONS LESS THAN 6" PERPENDICULAR TO DECK SPAN THAT FALL BETWEEN DECK FLUTES 2 RIBS MIN CONTINUOUS BETWEEN ADJACENT SUPPORTS #8 TEK SCREWS TYP RIBS EACH SIDE OF OPENING MUST BE CONTINUOUS BETWEEN ADJACENT SUPPORTS C
