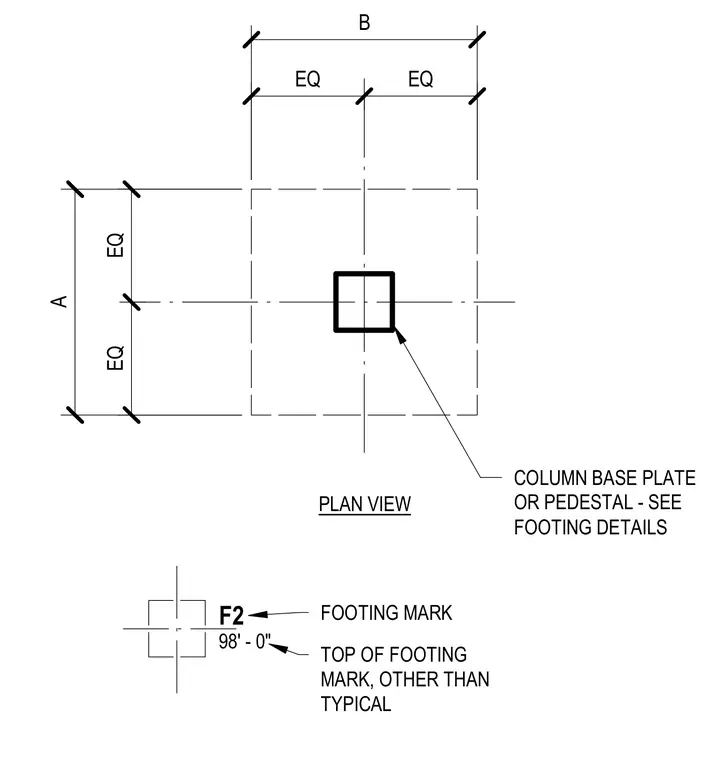

A square spread footing plan view centers a structural column base plate or pedestal within symmetrical dimensions A and B. Dashed centerlines align the column profile with the footing edges. Dimension ticks divide the footing width and length equally across the central axes. A separate key provides footing mark F2 alongside an elevation marker indicating the top of the footing.
COLUMN BASE PLATE OR PEDESTAL - SEE FOOTING DETAILS PLAN VIEW B A F2 98' - 0" FOOTING MARK TOP OF FOOTING MARK, OTHER THAN TYPICAL EQ EQ EQ EQ
