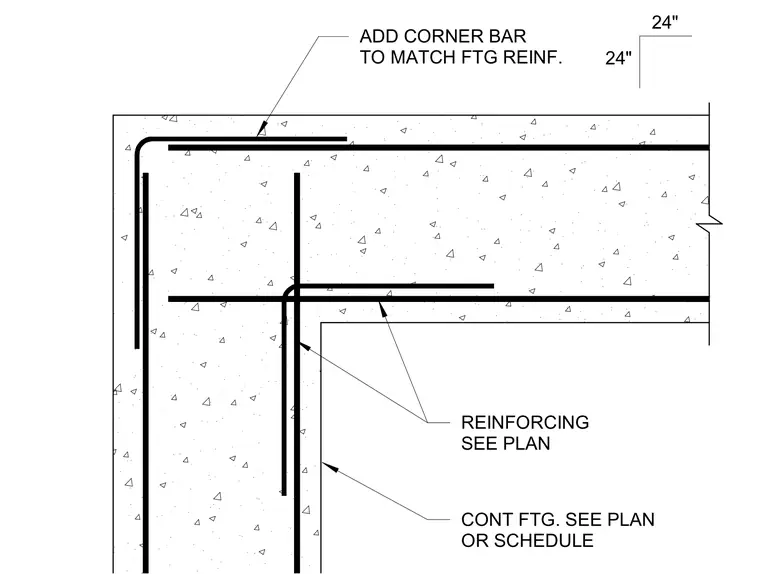

Reinforcement layout at a 90-degree corner for a continuous concrete footing. Primary longitudinal reinforcement is sized per the structural plan or schedule. An additional corner bar maintains continuity and structural integrity at the intersection, with a 24-inch extension beyond the corner point. Continuous footing reinforcement overlaps and hooks around the corner to ensure proper development length and load transfer.
Text on the drawing
REINFORCING SEE PLAN CONT FTG. SEE PLAN OR SCHEDULE TO MATCH FTG REINF. 24" DETAIL BOOK REF. SHEET: S1.06 DATE: 02/20/2023
