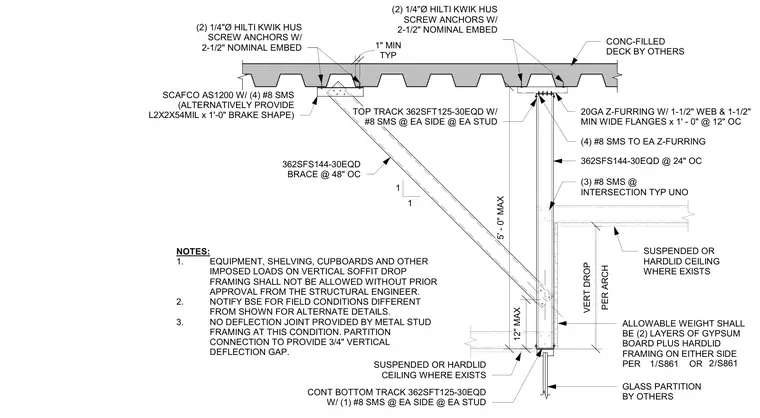

A cold-formed steel vertical soffit drop framing assembly anchors to an overhead concrete-filled metal deck using a top track and a 362SFS144-30EQD brace spaced at forty-eight inches on center. The top track secures to the deck with two quarter-inch diameter Hilti Kwik Hus screw anchors possessing a two-and-a-half-inch nominal embedment. A Scafco AS1200 clip with four number eight sheet metal screws, or alternatively a 54-mil brake shape angle, stabilizes the diagonal brace connection. Vertical studs spaced at twenty-four inches on center intersect a continuous bottom track fixed with number eight sheet metal screws at each side and stud. A glass partition by others connects below with a three-quarter-inch vertical deflection gap while gypsum board assemblies and Z-furring attach to the framing per project specifications.
SCAFCO AS1200 W/ (4) #8 SMS (ALTERNATIVELY PROVIDE L2X2X54MIL x 1'-0" BRAKE SHAPE) 1 1 TOP TRACK 362SFT125-30EQD W/ #8 SMS @ EA SIDE @ EA STUD PER ARCH VERT DROP CONC-FILLED DECK BY OTHERS (2) 1/4"Ø HILTI KWIK HUS SCREW ANCHORS W/ 2-1/2" NOMINAL EMBED (2) 1/4"Ø HILTI KWIK HUS SCREW ANCHORS W/ 2-1/2" NOMINAL EMBED 20GA Z-FURRING W/ 1-1/2" WEB & 1-1/2" MIN WIDE FLANGES x 1' - 0" @ 12" OC (4) #8 SMS TO EA Z-FURRING 12" MAX 362SFS144-30EQD BRACE @ 48" OC 362SFS144-30EQD @ 24" OC SUSPENDED OR HARDLID CEILING WHERE EXISTS CONT BOTTOM TRACK 362SFT125-30EQD W/ (1) #8 SMS @ EA SIDE @ EA STUD ALLOWABLE WEIGHT SHALL BE (2) LAYERS OF GYPSUM BOARD PLUS HARDLID FRAMING ON EITHER SIDE PER OR NOTES: 1. EQUIPMENT, SHELVING, CUPBOARDS AND OTHER IMPOSED LOADS ON VERTICAL SOFFIT DROP FRAMING SHALL NOT BE ALLOWED WITHOUT PRIOR APPROVAL FROM THE STRUCTURAL ENGINEER. 2. NOTIFY BSE FOR FIELD CONDITIONS DIFFERENT FROM SHOWN FOR ALTERNATE DETAILS. 3. NO DEFLECTION JOINT PROVIDED BY METAL STUD FRAMING AT THIS CONDITION. PARTITION CONNECTION TO PROVIDE 3/4" VERTICAL DEFLECTION GAP. SUSPENDED OR HARDLID CEILING WHERE EXISTS / 1 S861 GLASS PARTITION BY OTHERS 5' - 0" MAX TYP 1" MIN (3) #8 SMS @ INTERSECTION TYP UNO / 2 S861
