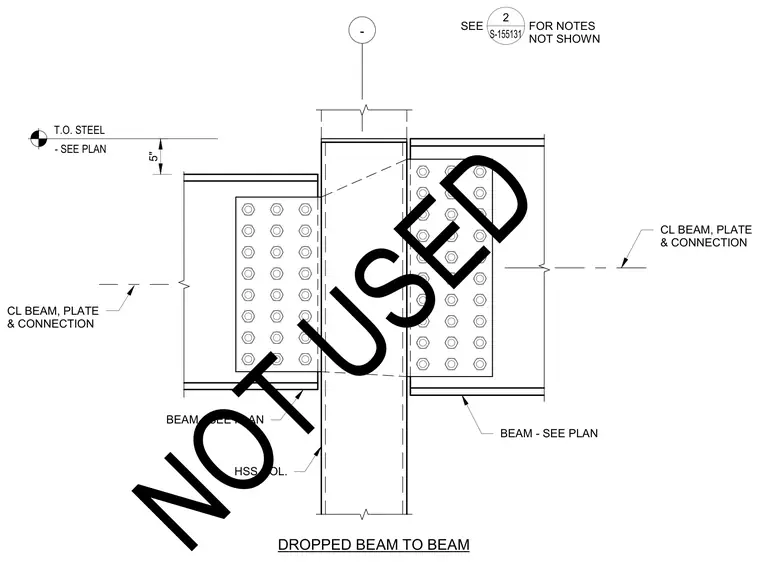

A dropped steel beam connects to a hollow structural section column using bolted framing angles or shear tabs, with beam sizing and top of steel elevations referenced to plan. Additional connection plates and centerlines align the intersecting members at an offset below the top of steel.
CL BEAM, PLATE & CONNECTION BEAM - SEE PLAN HSS COL. CL BEAM, PLATE & CONNECTION DROPPED BEAM TO BEAM BEAM - SEE PLAN T.O. STEEL - SEE PLAN 5" - SEE FOR NOTES NOT SHOWN 2 S-155131 NOT USED
