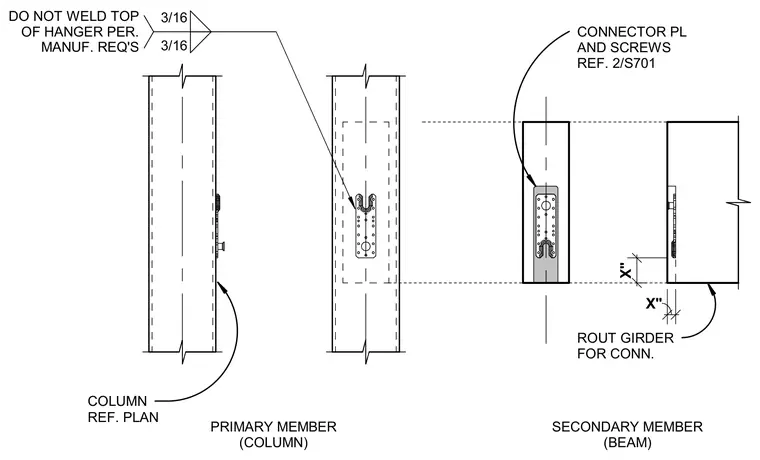

A secondary member connects to a primary column member utilizing a connector plate fastened with screws. The girder is routed to accommodate the connection hardware per plan requirements. A hanger is welded to the primary member with three-sixteenths inch fillet welds, leaving the top of the hanger unwelded per manufacturer requirements.
ROUT GIRDER FOR CONN. CONNECTOR PL AND SCREWS REF. 2/S701 PRIMARY MEMBER (COLUMN) X" SECONDARY MEMBER (BEAM) 3/16 3/16 COLUMN REF. PLAN X" DO NOT WELD TOP OF HANGER PER. MANUF. REQ'S
