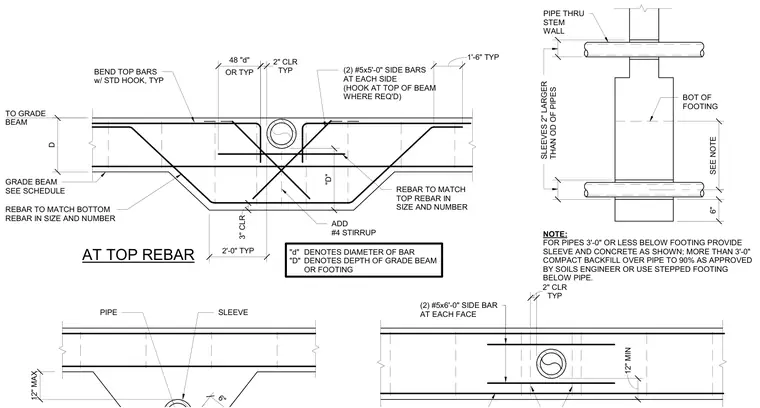

Concrete grade beam and stem wall reinforcement configurations surround utility pipe penetrations. Top reinforcing bars bend with standard hooks around sleeves, supplemented by two number five by five-foot side bars at each side and additional number four stirrups. Side faces receive two number five by six-foot side bars maintaining a three-inch clear cover at the bottom and two-inch clear cover elsewhere. Pipe sleeves are sized two inches larger than the outside diameter of the pipes. Pipes located three feet or less below the footing require a concrete encasement sleeve, while deeper pipes require compacted backfill or a stepped footing.
AT TOP REBAR REBAR TO MATCH BOTTOM REBAR IN SIZE AND NUMBER GRADE BEAM SEE SCHEDULE TO GRADE BEAM SLEEVE PIPE BEND TOP BARS w/ STD HOOK, TYP (2) #5x5'-0" SIDE BARS AT EACH SIDE (HOOK AT TOP OF BEAM WHERE REQ'D) REBAR TO MATCH TOP REBAR IN SIZE AND NUMBER ADD #4 STIRRUP "d" DENOTES DIAMETER OF BAR "D" DENOTES DEPTH OF GRADE BEAM OR FOOTING (2) #5x6'-0" SIDE BAR AT EACH FACE 3" CLR 6" D TYP 2" CLR "D" 2'-0" TYP 12" MAX TYP 2" CLR 12" MIN OR TYP 48 "d" 1'-6" TYP PIPE THRU STEM WALL BOT OF FOOTING NOTE: FOR PIPES 3'-0" OR LESS BELOW FOOTING PROVIDE SLEEVE AND CONCRETE AS SHOWN; MORE THAN 3'-0" COMPACT BACKFILL OVER PIPE TO 90% AS APPROVED BY SOILS ENGINEER OR USE STEPPED FOOTING BELOW PIPE. 6" . . SLEEVES 2" LARGER THAN OD OF PIPES SEE NOTE
