Window System Connection at Concrete Slab and Steel Beam

Materials

Concrete Steel Timber / Wood Metal (misc.)

Elements

Beams Windows Ceilings Floors / Slabs Decks Arches Bracing Connections / Plates

Connections

Beam-to-Beam Bracing Connection Welded Connection

About this detail

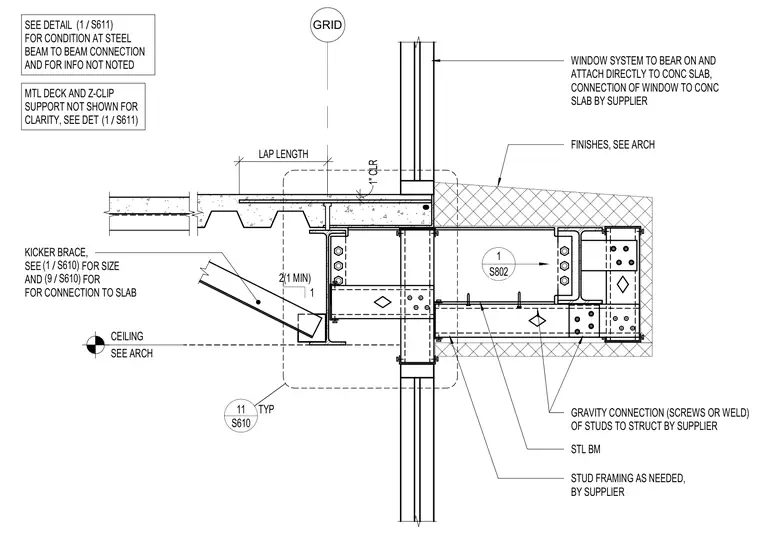

The window system bears on and attaches directly to the concrete slab, with its connection provided by the supplier. A kicker brace connects to the slab and steel beam, with sizing and connection details referenced on structural sheets. A steel beam supports metal decking and concrete topping with stud framing added as needed by the supplier using gravity connections via screws or welds. Architectural finishes and ceiling heights are coordinated per architectural drawings, and metal deck supports and Z-clips are omitted from view for clarity.
