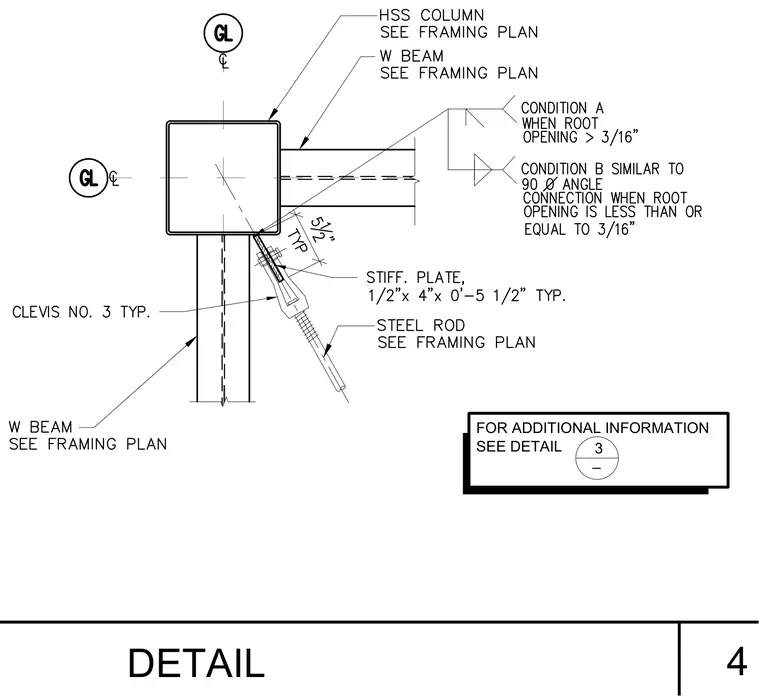

A diagonal steel rod connects to a hollow structural section column and wide flange beam framing assembly via a clevis no. 3 typical and a one-half inch by four inch by zero foot five and one-half inch stiffener plate. The stiffener plate is welded to the HSS column and wide flange beam connection with specific weld conditions depending on root opening size. Condition A applies when the root opening exceeds three-sixteenths of an inch, while Condition B applies when the root opening is less than or equal to three-sixteenths of an inch.
