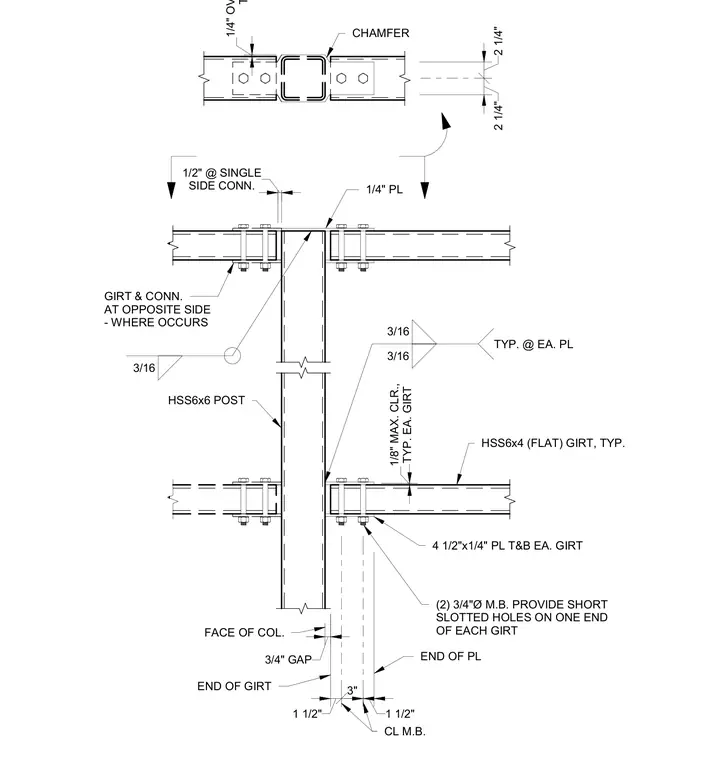

A hollow structural section post supports horizontal hollow structural section flat girts on opposing sides using top and bottom connecting plates. Each girt connects with four-and-one-half by one-quarter inch plates welded top and bottom with three-sixteenths inch fillet welds. Two three-quarters inch diameter machine bolts fasten each connection, utilizing short slotted holes on one end of each girt to accommodate movement. A one-eighth inch maximum clearance is maintained at each girt, with a three-quarter inch gap detailed between girt ends at the column face.
1 1/2" 3" 3/4" GAP GIRT & CONN. AT OPPOSITE SIDE - WHERE OCCURS HSS6x6 POST HSS6x4 (FLAT) GIRT, TYP. 4 1/2"x1/4" PL T&B EA. GIRT (2) 3/4"Ø M.B. PROVIDE SHORT SLOTTED HOLES ON ONE END OF EACH GIRT END OF PL FACE OF COL. END OF GIRT CL M.B. 3/16 3/16 TYP. @ EA. PL 1 1/2" SIDE CONN. 1/2" @ SINGLE 1/4" PL CHAMFER TYP. 1/4" OVERHANG, 2 1/4" 2 1/4" 3/16 TYP. EA. GIRT 1/8" MAX. CLR.,
