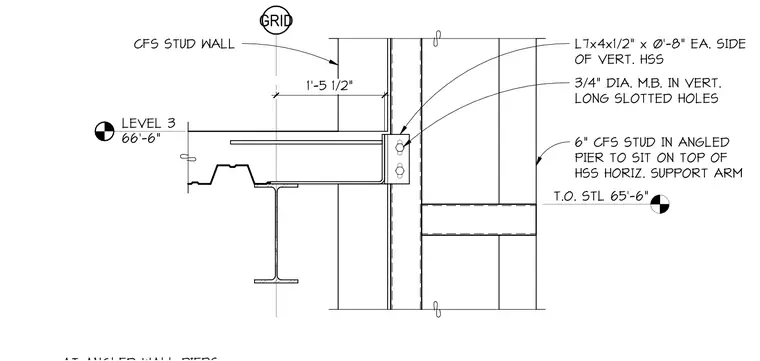

A six-inch cold-formed steel stud located in an angled pier sits on top of a hollow structural section horizontal support arm. The cold-formed steel stud wall connects to the vertical hollow structural section using L7x4x1/2 inch angles measuring zero feet eight inches long on each side. Three-quarter inch diameter machine bolts secure the connection through vertical long slotted holes. Level three sits at an elevation of sixty-six feet six inches, while top of steel is located at sixty-five feet six inches.
GRID LEVEL 3 66'-6" T.O. STL 65'-6" 1'-5 1/2" 6" CFS STUD IN ANGLED PIER TO SIT ON TOP OF HSS HORIZ. SUPPORT ARM 3/4" DIA. M.B. IN VERT. LONG SLOTTED HOLES L7x4x1/2" x 0'-8" EA. SIDE OF VERT. HSS CFS STUD WALL
