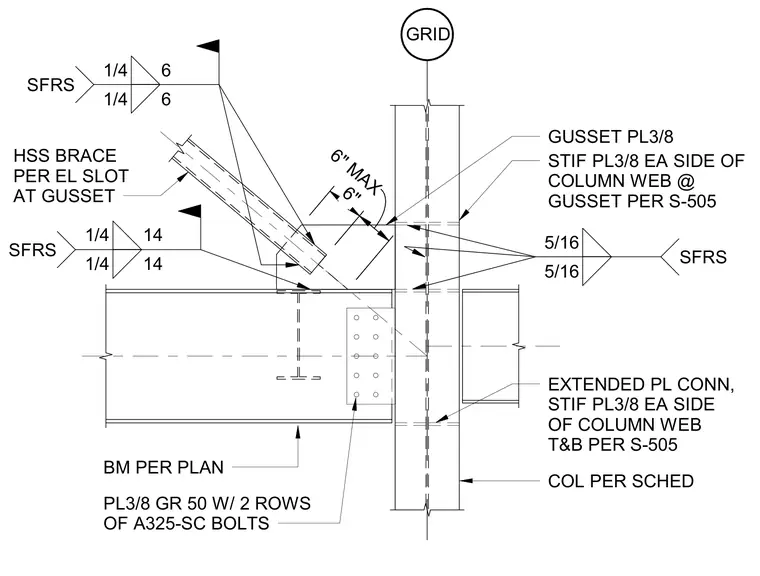

An hollow structural section brace connects to a gusset plate welded to a steel column and beam flange with fillet welds. Three-eighths-inch Grade 50 stiffener plates are welded to each side of the column web at the gusset plate and beam connection locations. A beam frames into the column flange using an extended plate connection fastened with two rows of A325-SC bolts. The hollow structural section brace features a slotted end at the gusset plate welded with quarter-inch fillet welds of specified lengths.
GRID EXTENDED PL CONN, STIF PL3/8 EA SIDE OF COLUMN WEB T&B PER S-505 PL3/8 GR 50 W/ 2 ROWS OF A325-SC BOLTS BM PER PLAN COL PER SCHED GUSSET PL3/8 STIF PL3/8 EA SIDE OF COLUMN WEB @ GUSSET PER S-505 5/16 5/16 SFRS 1/4 14 1/4 14 SFRS 1/4 6 1/4 6 SFRS HSS BRACE PER EL SLOT AT GUSSET 6" MAX 6"
