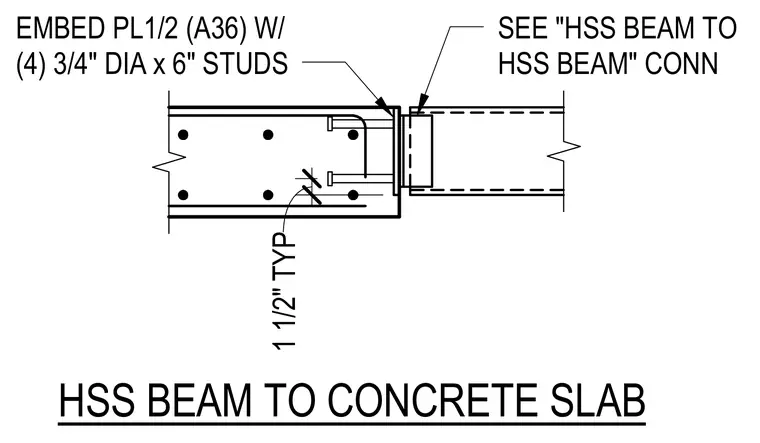

A hollow structural section beam frames into a concrete slab using a half-inch thick A36 embed plate secured with four three-quarter inch diameter by six-inch headed shear studs. The connection references a separate HSS beam to HSS beam detail. A typical one and one-half inch dimension is indicated along the concrete edge.
HSS BEAM TO CONCRETE SLAB 1 1/2" TYP SEE "HSS BEAM TO HSS BEAM" CONN EMBED PL1/2 (A36) W/ (4) 3/4" DIA x 6" STUDS
