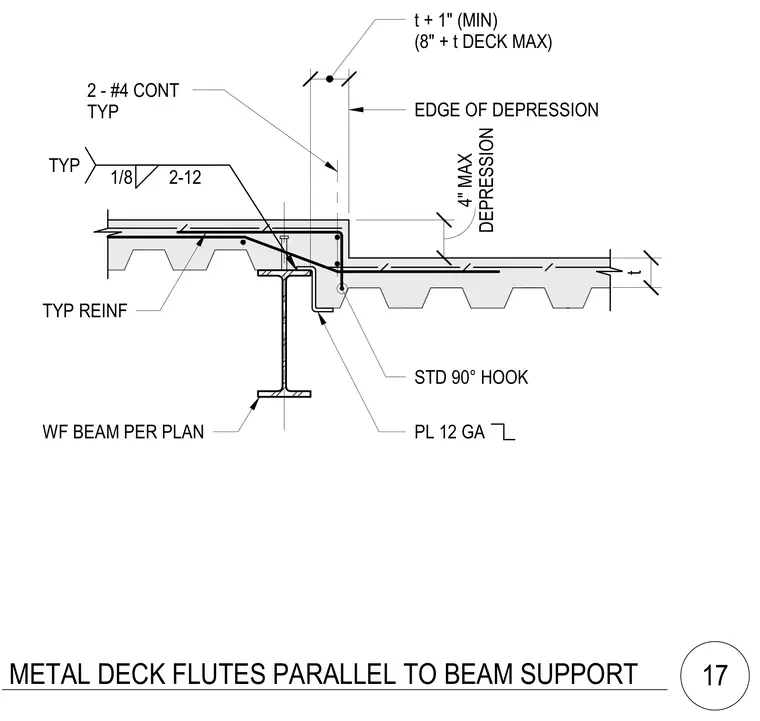

A concrete slab depression runs parallel to the flutes of a metal deck supported by a wide-flange steel beam. The assembly incorporates a twelve-gauge formed steel plate supporting the edge of the four-inch maximum slab depression. Reinforcement consists of two continuous number four bars with standard ninety-degree hooks anchored into the depressed slab zone, alongside typical deck reinforcing. A one-eighth inch fillet weld spaced at twelve inches typical secures the components. The wide-flange beam size is specified per structural plans.
PL 12 GA TYP REINF 2 - #4 CONT TYP WF BEAM PER PLAN EDGE OF DEPRESSION STD 90° HOOK 1/8 2-12 TYP DEPRESSION 4" MAX t t + 1" (MIN) (8" + t DECK MAX) METAL DECK FLUTES PARALLEL TO BEAM SUPPORT 17
