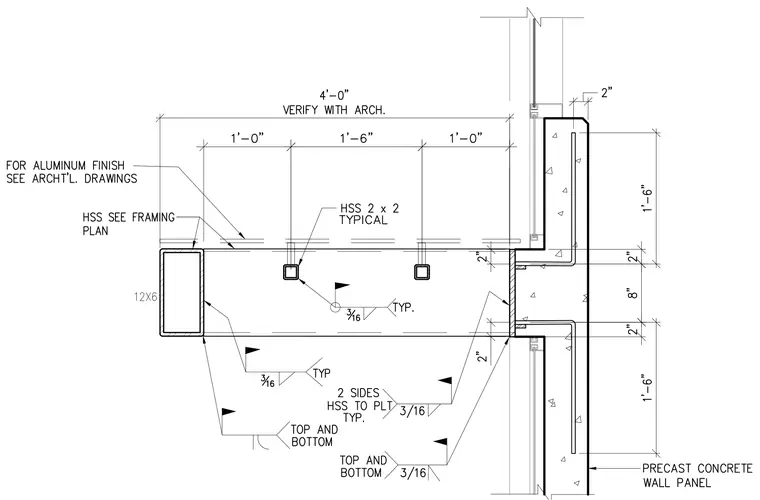

A precast concrete wall panel features embedded hooked dowels that connect to a steel plate welded to the end of the framing. Two HSS 2x2 members run perpendicular to the main framing members at designated intervals, secured with 3/16-inch typical fillet welds on two sides. An edge HSS 12x6 member ties the assembly together, welded top and bottom with 3/16-inch fillet welds. Dimensions indicate a 4'-0" overall span, verified with architectural drawings, with intermediate spacings of 1'-0", 1'-6", and 1'-0". Aluminum finish details and additional framing sizing are coordinated per architectural and framing plans.
