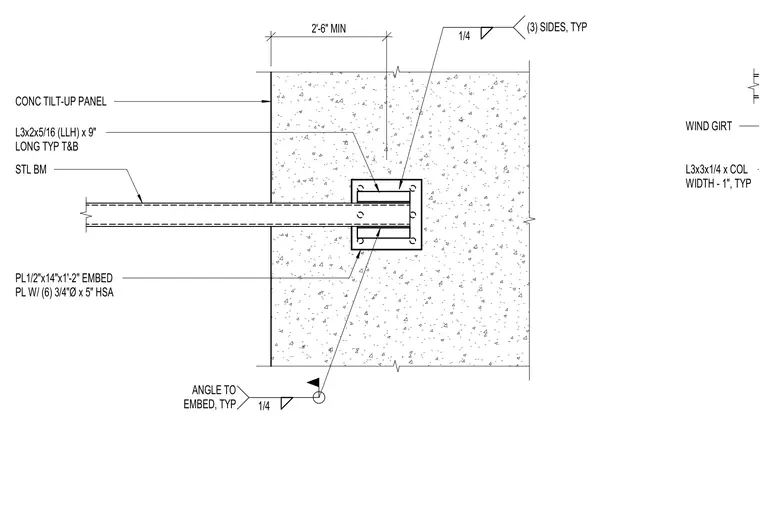

A steel beam connects to a concrete tilt-up panel via a one-half inch by fourteen inch by one foot two inch steel embed plate. The plate is secured to the concrete with six three-quarter inch diameter by five inch long heavy-duty expansion anchors. The steel beam is welded to the embed plate with a one-quarter inch fillet weld applied to three sides, typical. Two L3x2x5/16 long-leg-horizontal angles, nine inches long, are provided at the top and bottom of the beam connection. These angles are welded to the embed plate with a one-quarter inch fillet weld, typical.
