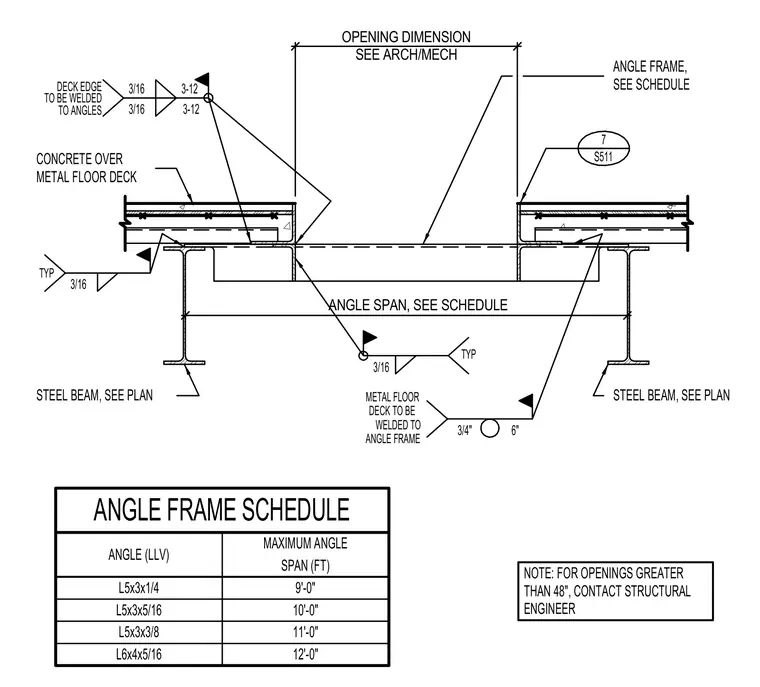

A floor opening through a concrete slab and metal floor deck is framed with structural steel angle headers supported by steel beams. The metal floor deck is secured to the angle frame with three-sixteenths inch fillet welds. An angle frame schedule provides maximum span sizes ranging from nine feet for an L5x3x1/4 angle up to twelve feet for an L6x4x5/16 angle. A note mandates contacting the structural engineer for openings greater than forty-eight inches. All framing connections use typical three-sixteenths inch welds.
ANGLE FRAME SCHEDULE TO BE WELDED 3/16 DECK EDGE TO ANGLES 3/16 TYP SEE SCHEDULE CONCRETE OVER METAL FLOOR DECK ANGLE FRAME, TYP 3/16 STEEL BEAM, SEE PLAN STEEL BEAM, SEE PLAN 3/4" 6" NOTE: FOR OPENINGS GREATER THAN 48", CONTACT STRUCTURAL ENGINEER 3/16 3-12 3-12 METAL FLOOR DECK TO BE WELDED TO ANGLE FRAME 7 S511 OPENING DIMENSION SEE ARCH/MECH ANGLE SPAN, SEE SCHEDULE 12'-0" L6x4x5/16 11'-0" L5x3x3/8 10'-0" L5x3x5/16 9'-0" L5x3x1/4 SPAN (FT) MAXIMUM ANGLE ANGLE (LLV)
