Structural · S-YW44N

Gravity Column Exterior Footing and Base Plate Connection

Materials

Concrete

Elements

Columns Walls Floors / Slabs Foundations / Footings Arches Anchors / Embeds Reinforcing

Connections

Base Plate / Anchorage Bolted Connection Rebar Splice / Development

About this detail

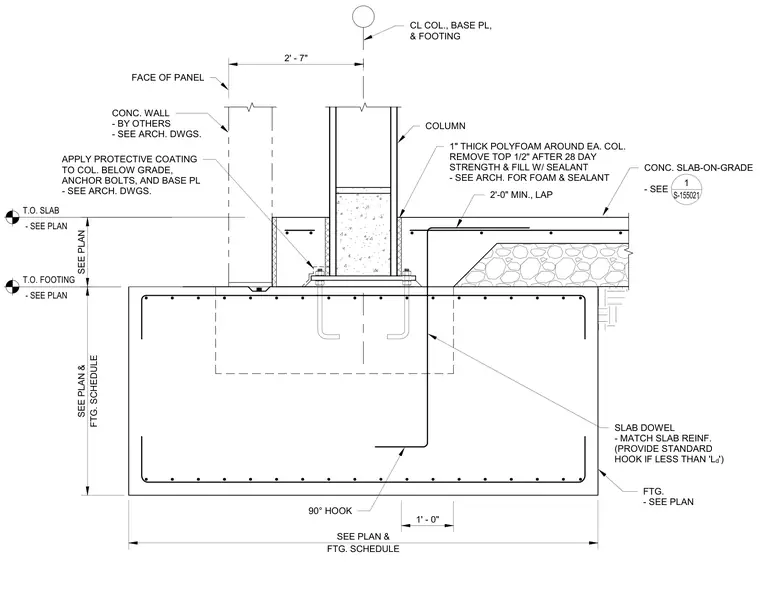

An exterior gravity column bears onto a concrete footing via a base plate secured with anchor bolts. One inch thick polyfoam wraps each column, with the top half-inch removed after twenty-eight-day strength and filled with sealant per architectural drawings. A protective coating is applied to the column below grade, anchor bolts, and base plate. A concrete slab-on-grade ties into the assembly with slab dowels featuring a two-foot minimum lap and standard ninety-degree hooks. A concrete wall by others bears near the footing edge, with top of footing and top of slab elevations sized per plan.
