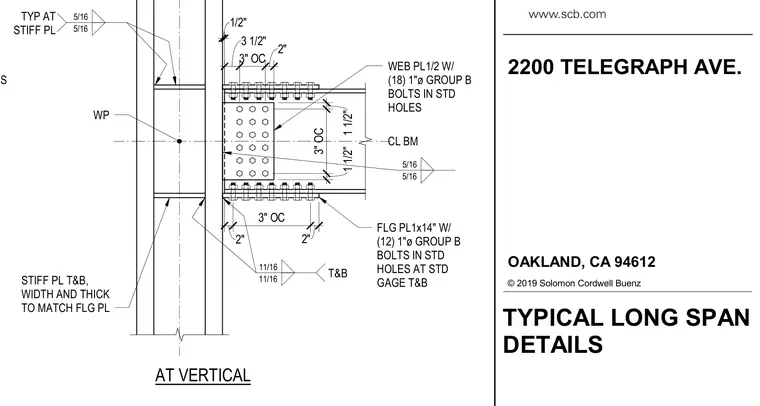

A wide-flange steel beam connects to a vertical structural member using top and bottom flange plates measuring one inch by fourteen inches with twelve one-inch-diameter Group B bolts in standard holes at standard gauge. A half-inch web plate connects the beam web with eighteen one-inch-diameter Group B bolts in standard holes. Top and bottom stiffener plates, with width and thickness matching the flange plates, are welded with five-sixteenth-inch fillet welds. Five-sixteenth-inch fillet welds secure the plates typically at the stiffener plates top and bottom.
1ø GROUP B BOLTS 1/2" 3 1/2" 3" OC 2" 1 1/2" 3" OC 1 1/2" TYP AT STIFF PL 5/16 5/16 2" 3" OC 2" T&B 11/16 11/16 STIFF PL T&B, WIDTH AND THICK TO MATCH FLG PL FLG PL1x14" W/ (12) 1"ø GROUP B BOLTS IN STD HOLES AT STD GAGE T&B WEB PL1/2 W/ (18) 1"ø GROUP B BOLTS IN STD HOLES CL BM 5/16 5/16 WP AT VERTICAL © 2019 Solomon Cordwell Buenz TYPICAL LONG SPAN DETAILS OAKLAND, CA 94612 2200 TELEGRAPH AVE.
