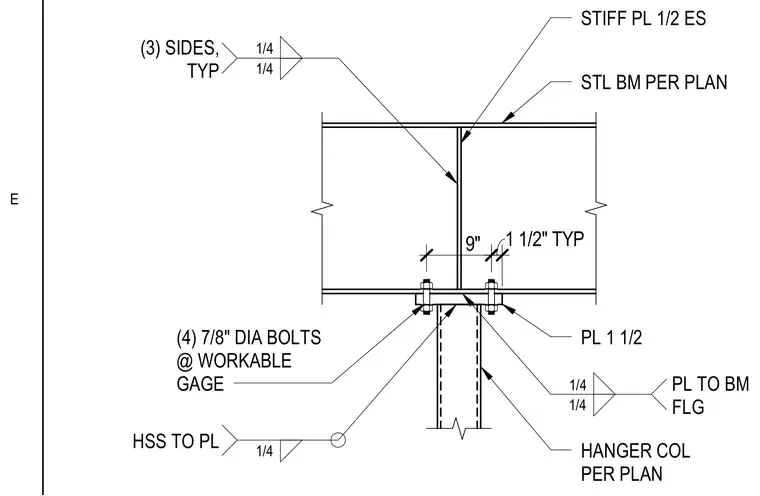

A hollow structural section hanger column extends upward to a one-and-a-half-inch connection plate welded with quarter-inch fillet welds on three sides between the mezzanine and level two. Four seven-eighth-inch diameter bolts fasten the plate to the lower flange of the steel beam at a workable gauge. Half-inch stiffener plates are welded to each side of the beam web using quarter-inch fillet welds to transfer the load.
STL BM PER PLAN STIFF PL 1/2 ES PL 1 1/2 HANGER COL PER PLAN (4) 7/8" DIA BOLTS @ WORKABLE GAGE HSS TO PL 1/4 9" (3) SIDES, TYP 1/4 1/4 1 1/2" TYP PL TO BM FLG 1/4 1/4 E
