Structural · S-YVJGF

HSS Post and Channel Framing Connection Details

Materials

Concrete Steel

Elements

Columns Site / Paving

Connections

HSS Connection Bolted Connection

About this detail

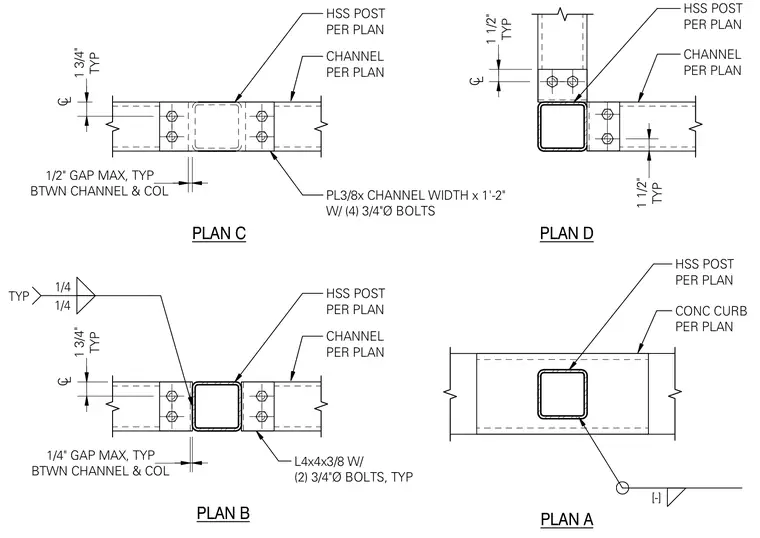

Hollow structural section posts connect to structural channels in these structural framing plans. Plan A has an HSS post adjacent to a concrete curb with a welded connection. Plan B has an inline HSS post flanked by channels connected via L4x4x3/8 angles with two three-quarter-inch diameter bolts per connection, maintaining a one-quarter-inch maximum gap. Plan C has a channel connection using a three-eighths-inch thick plate matching the channel width and one foot two inches long, secured with four three-quarter-inch diameter bolts between the channel and column, with a one-half-inch maximum gap. Plan D has a corner or edge configuration with an HSS post framing into intersecting channels.

Members view this detail in full resolution, download the CAD files (SVG, PDF), and can adapt it in the built-in CAD editor — export DXF, DWG, or PDF.
