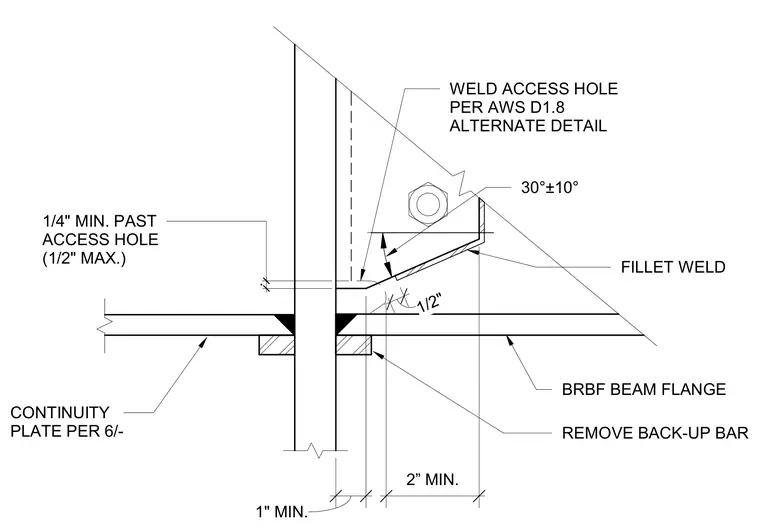

This structural steel detail shows the weld access hole configuration for a buckling-restrained braced frame beam flange connecting to a column. The weld access hole follows the alternate detail per AWS D1.8, incorporating a thirty-degree angle and specific dimensional tolerances. The back-up bar must be removed, extending one-quarter inch minimum to one-half inch maximum past the access hole. A continuity plate is provided per the referenced sheet, positioned opposite the beam flange. Fillet welds and specific clearance dimensions of one inch minimum and two inches minimum govern the geometry.
WELD ACCESS HOLE PER AWS D1.8 ALTERNATE DETAIL CONTINUITY PLATE PER 6/- REMOVE BACK-UP BAR BRBF BEAM FLANGE 1/4" MIN. PAST ACCESS HOLE (1/2" MAX.) FILLET WELD 30°±10° . 1" MIN. 24° 2” MIN. 1/2"
