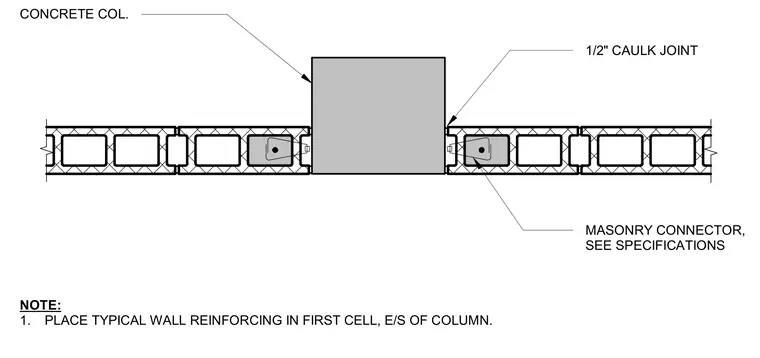

A concrete column intersects a concrete masonry unit wall with a half-inch caulk joint separating the two materials. Masonry connectors tie the masonry wall to the structural column, sized and installed per project specifications. Typical wall reinforcing is placed in the first cell on each side of the column.
NOTE: 1. PLACE TYPICAL WALL REINFORCING IN FIRST CELL, E/S OF COLUMN. CONCRETE COL. 1/2" CAULK JOINT MASONRY CONNECTOR, SEE SPECIFICATIONS
