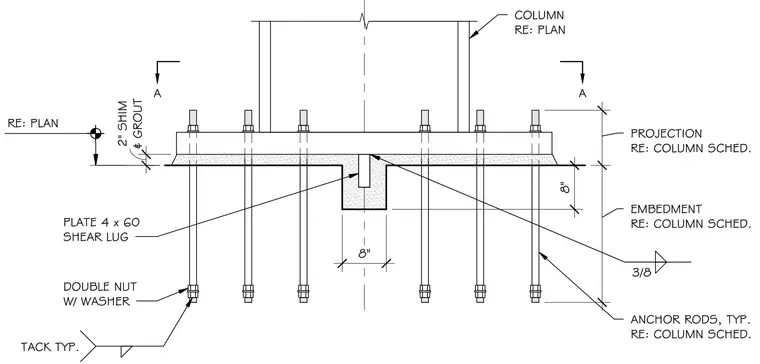

A structural steel column is welded to a base plate bearing on grout over a concrete foundation. Multiple anchor rods with double nuts and washers secure the assembly, with rod projection and embedment sized per the column schedule. A steel shear lug welded with a three-eighths inch fillet weld projects into an eight-inch deep recess in the concrete to transfer lateral loads. A two-inch shim space is provided beneath the base plate for leveling.
RE: PLAN A A 8" 8" PROJECTION RE: COLUMN SCHED. EMBEDMENT RE: COLUMN SCHED. COLUMN RE: PLAN ANCHOR RODS, TYP. RE: COLUMN SCHED. PLATE 4 x 60 SHEAR LUG DOUBLE NUT W/ WASHER 3/8 TACK TYP. & GROUT 2" SHIM
