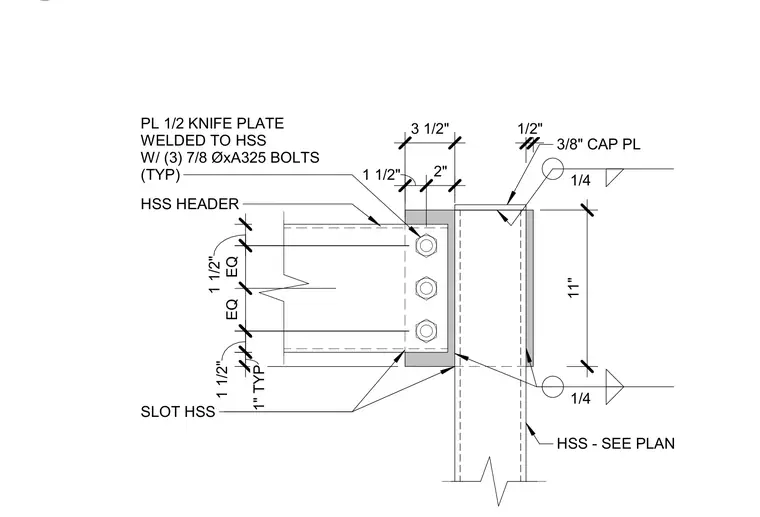

An HSS header frames into a vertical HSS structural member using a one-half-inch thick knife plate welded inside a slotted HSS profile. The connection is secured with three seven-eighths-inch diameter ASTM A325 bolts in a vertical arrangement. A three-eighths-inch cap plate seals the top of the vertical HSS member with quarter-inch fillet welds.
EQ EQ 11" 1 1/2" 2" 3 1/2" 3/8" CAP PL SLOT HSS PL 1/2 KNIFE PLATE WELDED TO HSS W/ (3) 7/8 ØxA325 BOLTS (TYP) HSS - SEE PLAN HSS HEADER 1/4 1/4 1/2" 1" TYP 1 1/2" 1 1/2"
