A moment splice connection between two beams of similar depth utilizes grade 50 plates and fillet welds. The bottom plate thickness matches the flange thickness of the cantilevered beam, with a minimum thickness of one-quarter inch. A half-inch minimum plate extends on both sides of the web, sized to the flange width of the cantilevered beam. Five-sixteenths inch fillet welds and complete joint penetration welds secure the connection components together.

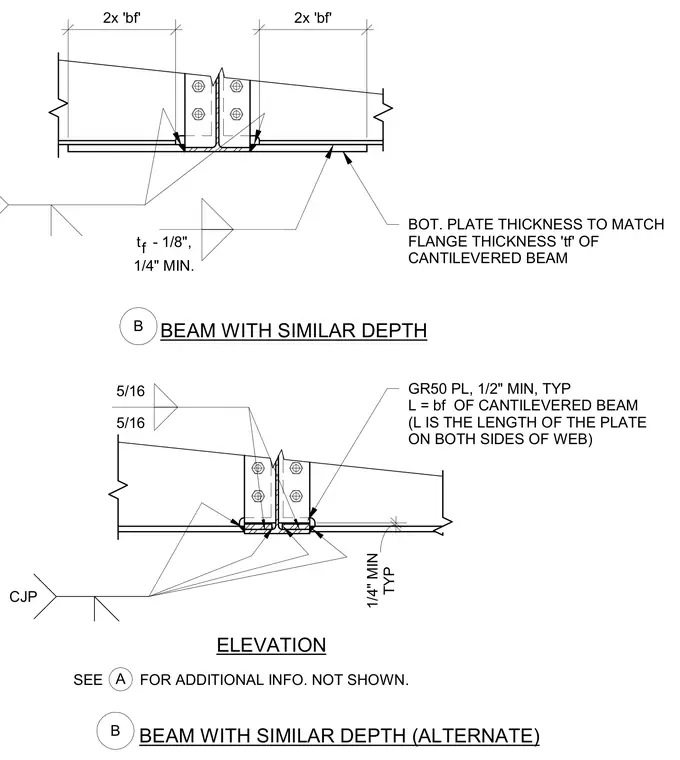

t - 1/8", ELEVATION BOT. PLATE THICKNESS TO MATCH FLANGE THICKNESS 'tf' OF CANTILEVERED BEAM 1/4" MIN. f A SEE FOR ADDITIONAL INFO. NOT SHOWN. BEAM WITH SIMILAR DEPTH BEAM WITH SIMILAR DEPTH (ALTERNATE) CJP GR50 PL, 1/2" MIN, TYP L = bf OF CANTILEVERED BEAM (L IS THE LENGTH OF THE PLATE ON BOTH SIDES OF WEB) 2x 'bf' 2x 'bf' 5/16 5/16 TYP 1/4" MIN B B
