Suspended load attachments from metal roof decks require specific plate washers, angles, and hanger assemblies depending on weight capacity limits. A supplier-provided hanger is secured through the metal roof deck using a one-quarter-inch by four-inch plate or an angle section with two number eight self-drilling screws. The assembly supports maximum point loads per flute ranging from fifteen pounds up to sixty pounds depending on the specific configuration. Suspended loads from the roof deck are restricted on deck spans greater than seven feet and single spans greater than six feet with a minimum twenty gauge deck requirement.

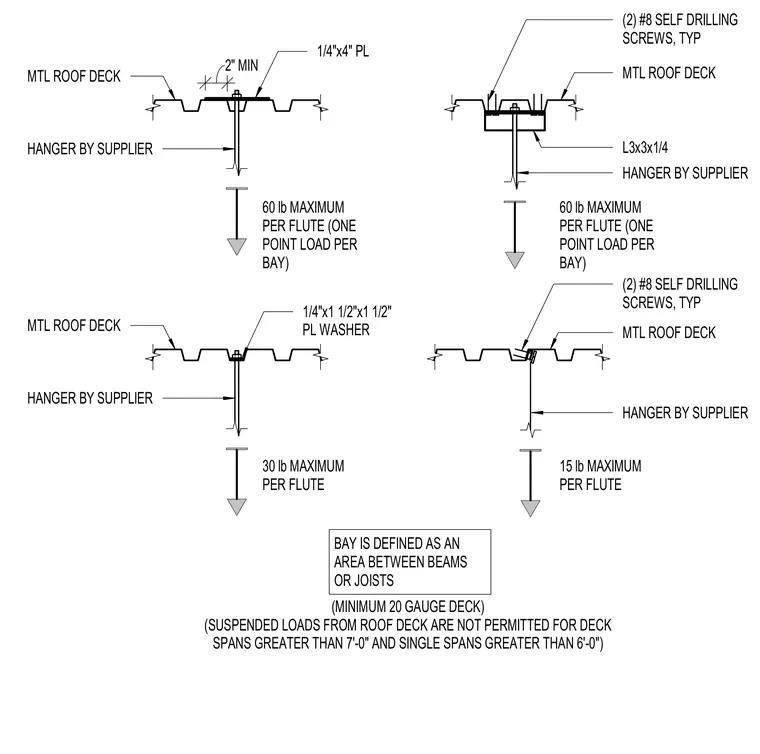

2" MIN 1/4"x4" PL HANGER BY SUPPLIER MTL ROOF DECK 60 lb MAXIMUM PER FLUTE (ONE POINT LOAD PER BAY) HANGER BY SUPPLIER MTL ROOF DECK 30 lb MAXIMUM PER FLUTE 60 lb MAXIMUM PER FLUTE (ONE POINT LOAD PER BAY) 15 lb MAXIMUM PER FLUTE 1/4"x1 1/2"x1 1/2" PL WASHER MTL ROOF DECK (2) #8 SELF DRILLING SCREWS, TYP L3x3x1/4 MTL ROOF DECK (MINIMUM 20 GAUGE DECK) (SUSPENDED LOADS FROM ROOF DECK ARE NOT PERMITTED FOR DECK SPANS GREATER THAN 7'-0" AND SINGLE SPANS GREATER THAN 6'-0") BAY IS DEFINED AS AN AREA BETWEEN BEAMS OR JOISTS (2) #8 SELF DRILLING SCREWS, TYP HANGER BY SUPPLIER HANGER BY SUPPLIER
