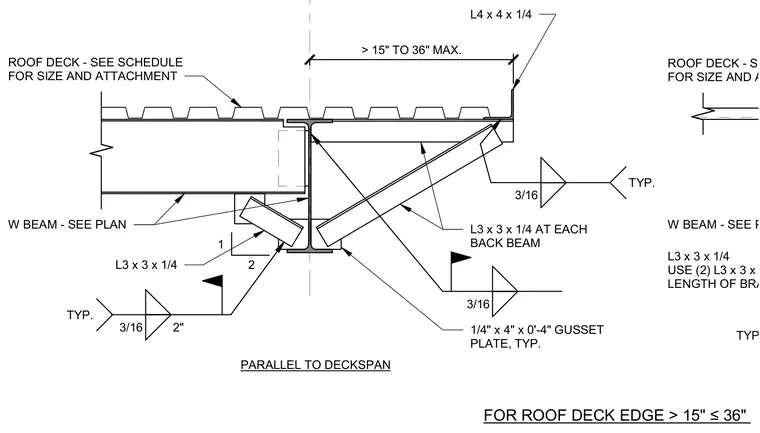

A roof framing brace connection runs parallel to the roof deck span. The assembly utilizes an L3 x 3 x 1/4 angle brace welded to a 1/4 inch by 4 inch by 4 inch gusset plate, which is typically attached to the supporting wide-flange beam sized per plan. An L4 x 4 x 1/4 angle provides edge support at the roof deck. Fillet welds of 3/16 inch size secure the connection elements. Dual angles (2) L3 x 3 x 1/4 are specified when the brace length equals or exceeds six feet.
2 1 L4 x 4 x 1/4 W BEAM - SEE PLAN 1/4" x 4" x 0'-4" GUSSET PLATE, TYP. L3 x 3 x 1/4 AT EACH BACK BEAM FOR ROOF DECK EDGE > 15" ≤36" W BEAM - SEE PLAN PARALLEL TO DECKSPAN ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT ROOF DECK - SEE SCHEDULE FOR SIZE AND ATTACHMENT L3 x 3 x 1/4 USE (2) L3 x 3 x 1/4 IF LENGTH OF BRACE ≥6'-0" L3 x 3 x 1/4 > 15" TO 36" MAX. 3/16 3/16 TYP. 3/16 2" TYP. TYP.
