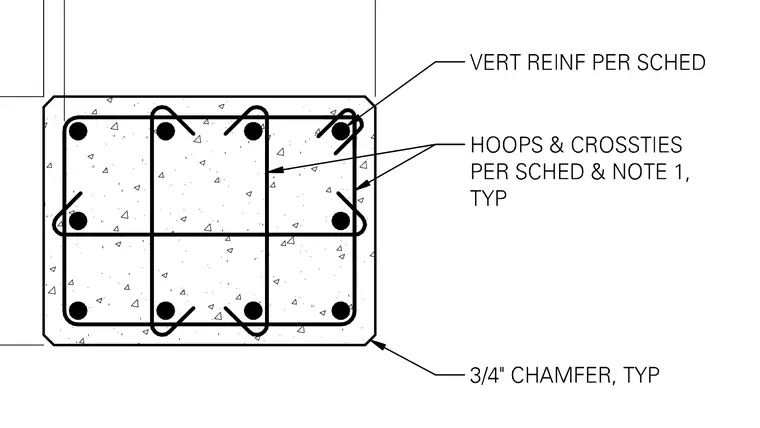

A rectangular reinforced concrete column cross-section features a typical three-quarter-inch chamfer at all outside corners. Vertical reinforcement is sized and spaced per the structural schedule. Confinement and shear reinforcement consist of internal hoops and crossties arranged per schedule and note requirements, featuring standard seismic hooks.
