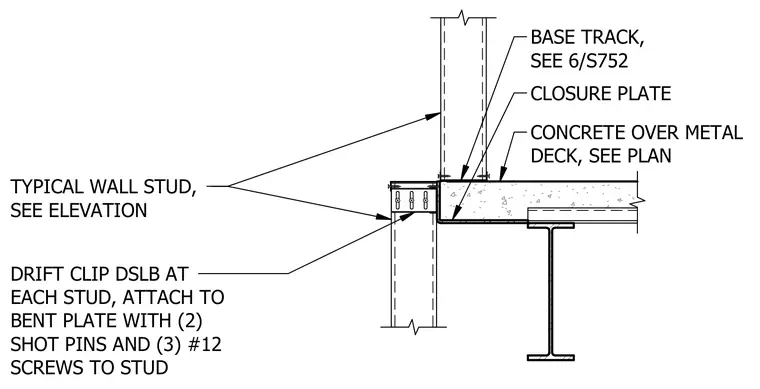

A drift clip of type DSLB is provided at each wall stud and attached to a bent plate using two shot pins, while securing to the stud with three number twelve screws. The assembly rests on a base track and a closure plate positioned above the concrete over metal deck. The concrete deck bears on a wide flange steel beam below.
DRIFT CLIP DSLB AT EACH STUD, ATTACH TO BENT PLATE WITH (2) SHOT PINS AND (3) #12 SCREWS TO STUD TYPICAL WALL STUD, SEE ELEVATION CLOSURE PLATE BASE TRACK, SEE 6/S752 CONCRETE OVER METAL DECK, SEE PLAN
