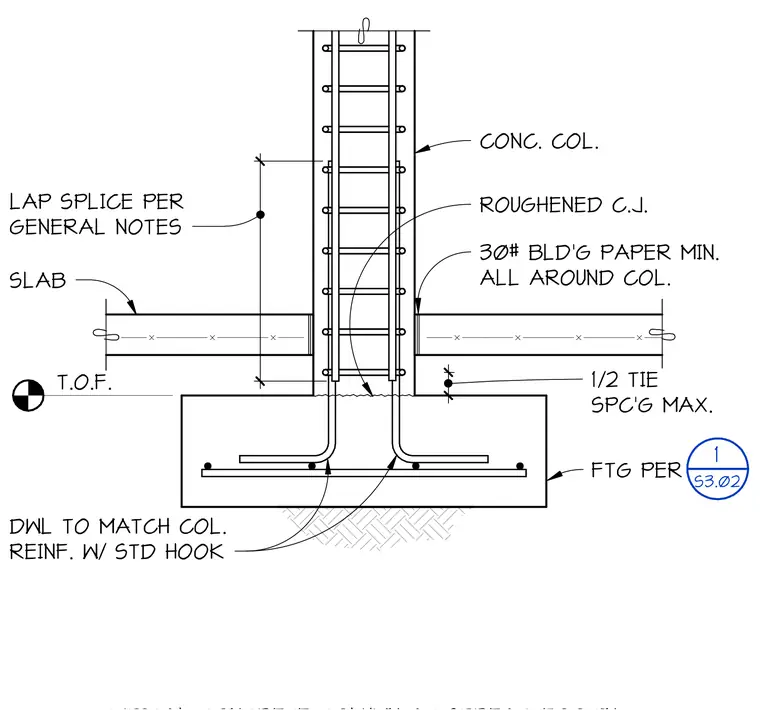

A reinforced concrete column rises from a spread footing, tied together by column dowels featuring standard hooks matching the column reinforcement. The construction joint at the base of the column is roughened and surrounded by a minimum of thirty-pound building paper. Vertical lap splices for the column reinforcement are provided per the general notes. Ties are spaced at a maximum of one-half the tie spacing within the connection zone, set relative to the top of the footing slab.
T.O.F. SLAB LAP SPLICE PER GENERAL NOTES FTG PER 30# BLD'G PAPER MIN. ALL AROUND COL. CONC. COL. DWL TO MATCH COL. REINF. W/ STD HOOK ROUGHENED C.J. 1/2 TIE SPC'G MAX. 1 S3.02
