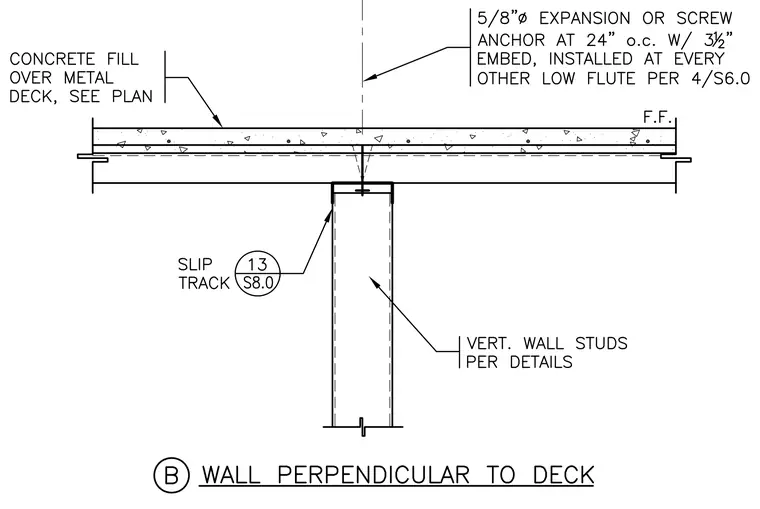

Vertical wall studs terminate at a slip track oriented perpendicular to the metal deck above. Concrete fill over metal deck is anchored to the support assembly with five-eighths-inch diameter expansion or screw anchors at twenty-four inches on center with three and one-half inch embedment, installed at every other low flute per 4/S6.0. The slip track is detailed further per detail 13 on sheet S8.0.
