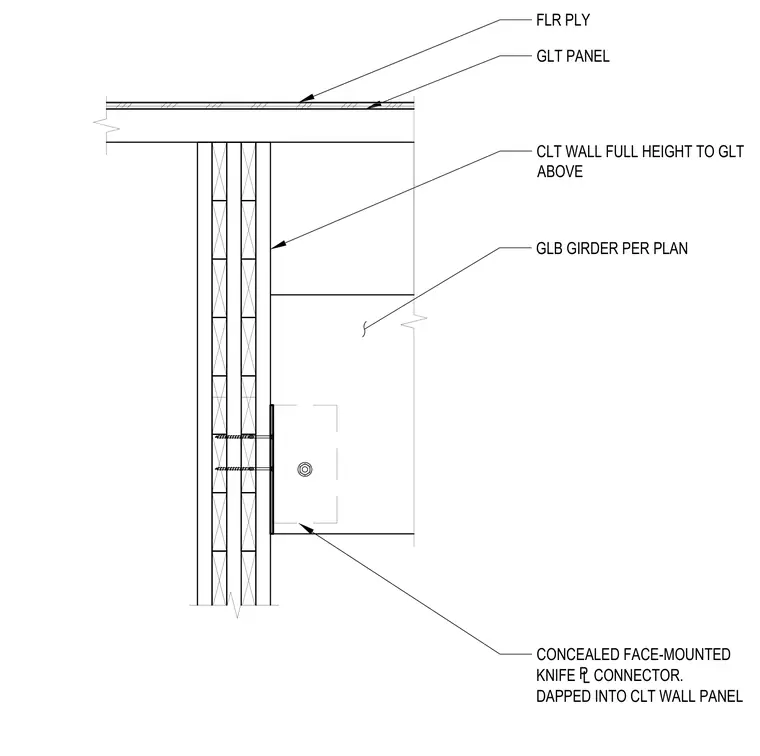

A glulam girder is supported by a full-height cross-laminated timber wall panel using a concealed face-mounted knife plate connector. The knife plate is dapped directly into the CLT wall panel and secured with through-bolts. The wall extends upward to meet the glulam panel above, which is finished with a floor plywood layer.
CLT WALL FULL HEIGHT TO GLT ABOVE GLT PANEL GLB GIRDER PER PLAN CONCEALED FACE-MOUNTED KNIFE { CONNECTOR. DAPPED INTO CLT WALL PANEL FLR PLY
