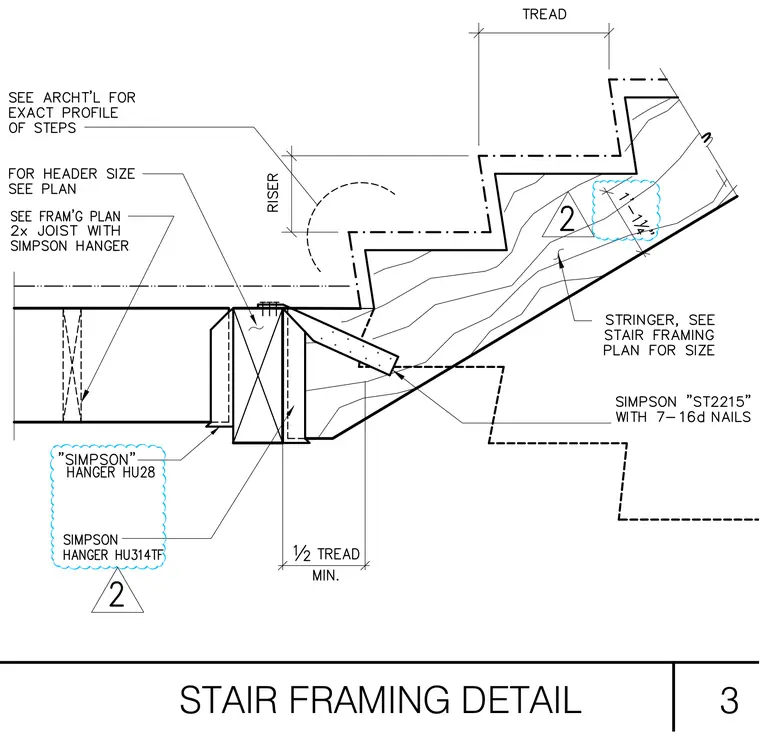

A wood stair stringer is supported at the landing header using a Simpson ST2215 connector secured with seven 16d nails. The stair header is framed with a double-by joist and supported by Simpson hangers HU28 and HU314TF. The exact step profile and riser dimensions are coordinated with architectural drawings, while header and stringer sizes are specified per the framing plan. A minimum one-half tread dimension is maintained at the landing connection.
