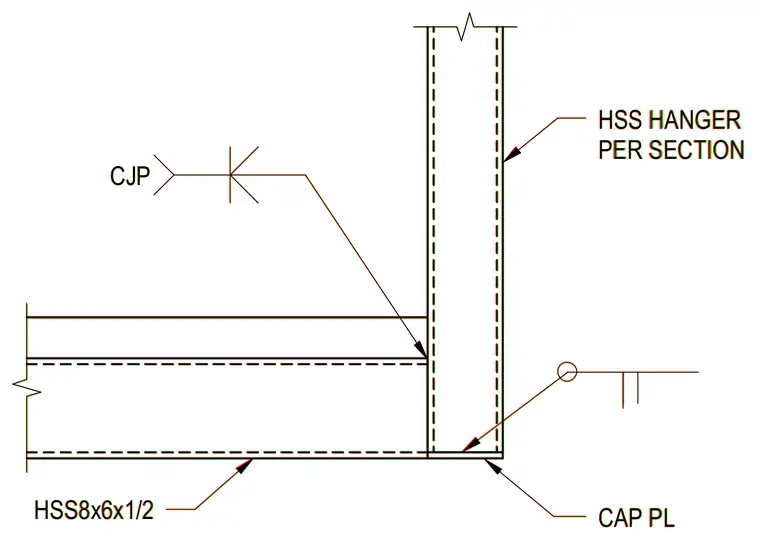

An HSS8x6x1/2 structural steel member connects to a cap plate with a complete joint penetration weld. The hollow structural section hanger continues upward per structural plans.
CAP PL HSS HANGER PER SECTION HSS8x6x1/2 CJP CAP PL HSS HANGER PER SECTION HSS8x6x1/2 CJP
