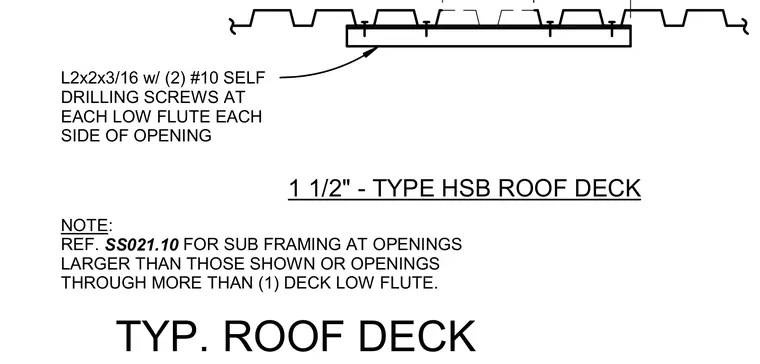

An angle measuring 2x2x3/16 inches is attached to the underside of a 1.5-inch Type HSB roof deck using two number 10 self-drilling screws at each low flute on each side of the deck opening. Sub-framing for larger openings or those spanning more than one deck low flute must follow sheet reference SS021.10.
1 1/2" - TYPE HSB ROOF DECK L2x2x3/16 w/ (2) #10 SELF DRILLING SCREWS AT EACH LOW FLUTE EACH SIDE OF OPENING NOTE: REF. SS021.10 FOR SUB FRAMING AT OPENINGS LARGER THAN THOSE SHOWN OR OPENINGS THROUGH MORE THAN (1) DECK LOW FLUTE. TYP. ROOF DECK
